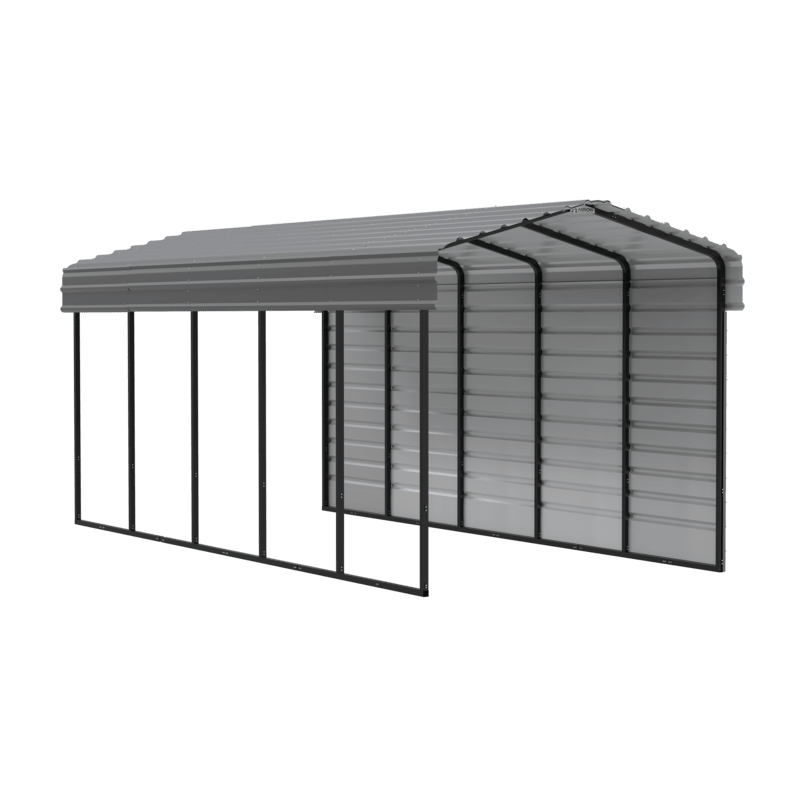

Arrow 1-Sided 10x24x9 Galvanized Steel Carport Kit - Charcoal (CPHC102409ECL1)

Arrow 1-sided 10x24x9 Galvanized Steel Carport Kit - Charcoal (CPHC102409ECL1)

This carport is characterized by its durable galvanized steel construction, ensuring longevity and resistance to rust and corrosion. Designed for compact cars, the carport provides ample space with its dimensions, accommodating vehicles comfortably while offering protection from sun, rain, and snow. Enhances durability by resisting scratches and fading over time with its charcoal color finish. The 1-sided enclosure feature allows for partial coverage, providing added security and protection from one side while maintaining accessibility from other directions. This configuration is ideal for positioning against a wall or a structure where one side is exposed. Easy to assemble with its metal carport kit design making it an excellent choice for safeguarding vehicles and belongings in diverse weather conditions.

Features:

• Featuring a 2 in. powder-coated steel tube frame
• Built for easier, faster assembly: its unique design features a slip-fit frame connection with pilot holes and self-drilling screws
• Rounded roof eaves and 12 in. overhang at the roof gables offer additional protection from the elements
• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport to provide extra protection from the elements
• The roof and sidewall come in an attractive eggshell finish
• Manufactured in the United States using globally-sourced materials
• Snow load is given as reference only and assumes a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.
• Comes with a 10-year limited warranty

Specifications:

Color: Charcoal
Frame Color: Black
Material: Steel
Assembly Required: Yes
Water Resistant: Yes
Building Shape: Peak
Shape of the Tube: Square
Wall Height: 108.75"

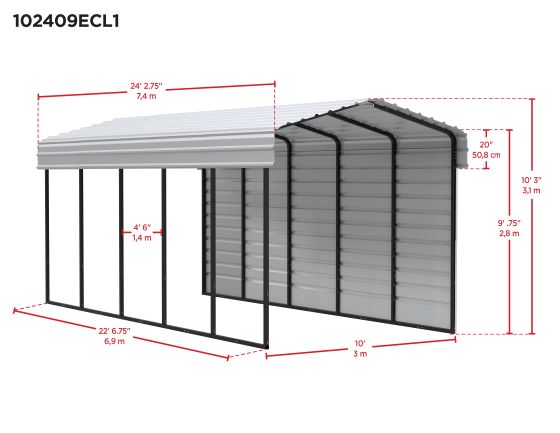

Assembled Exterior Dimensions: 120"W x 290.75"D x 123.15"H
Foundation Dimensions: 360"L x 132" W
Total Storage Volume: 2244 cu. ft
Total Storage Area: 234 sq. ft.
Wind Load Rating: 65 mph
Snow Load Rating: 35 psf
Door / Entrance Width Bottom: 116 in.
Door / Entrance Height: 106.75 in.
Shipping Dimensions: 30.5"W x 71.06"L x 29.18"H
Shipping Weight: 822.15 lbs
Shipping Method: LTL
