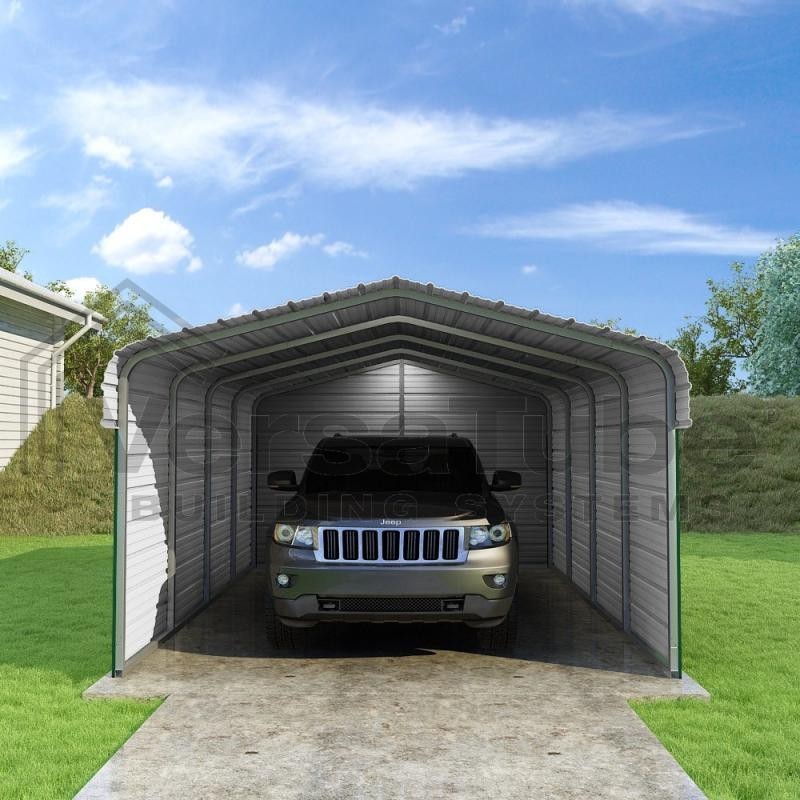

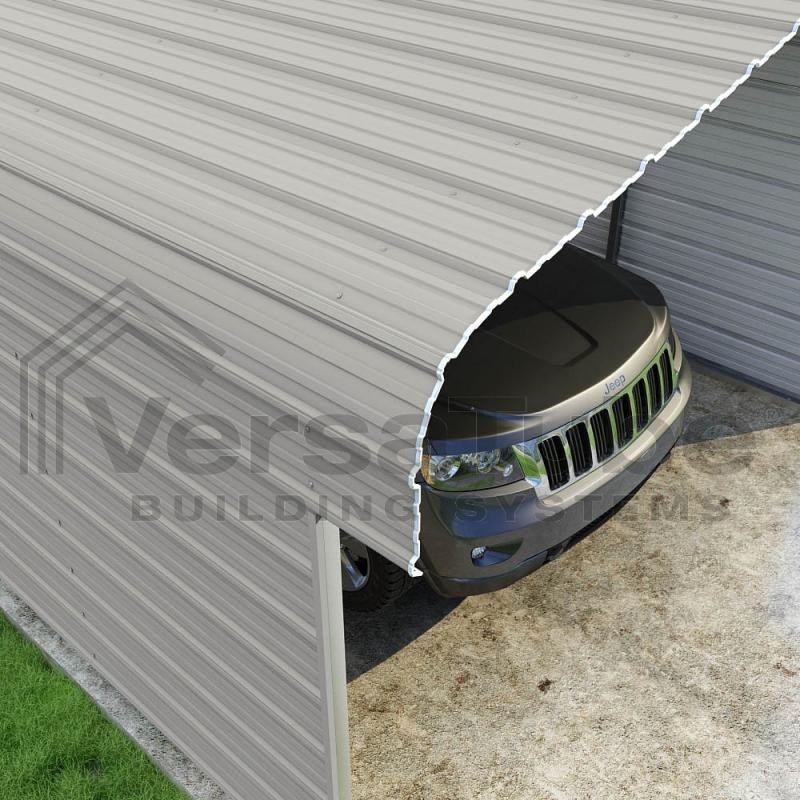

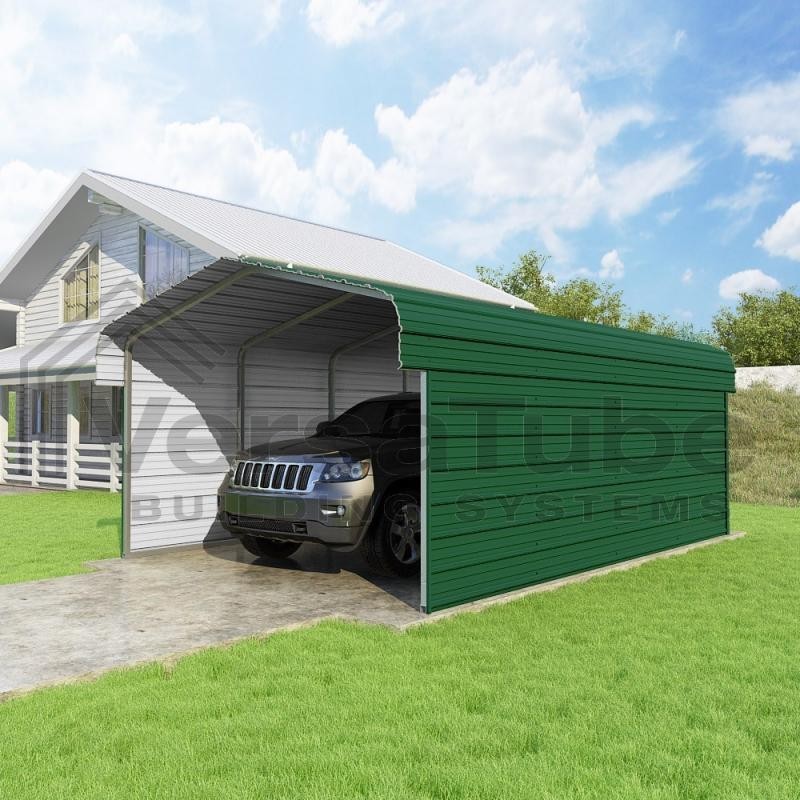

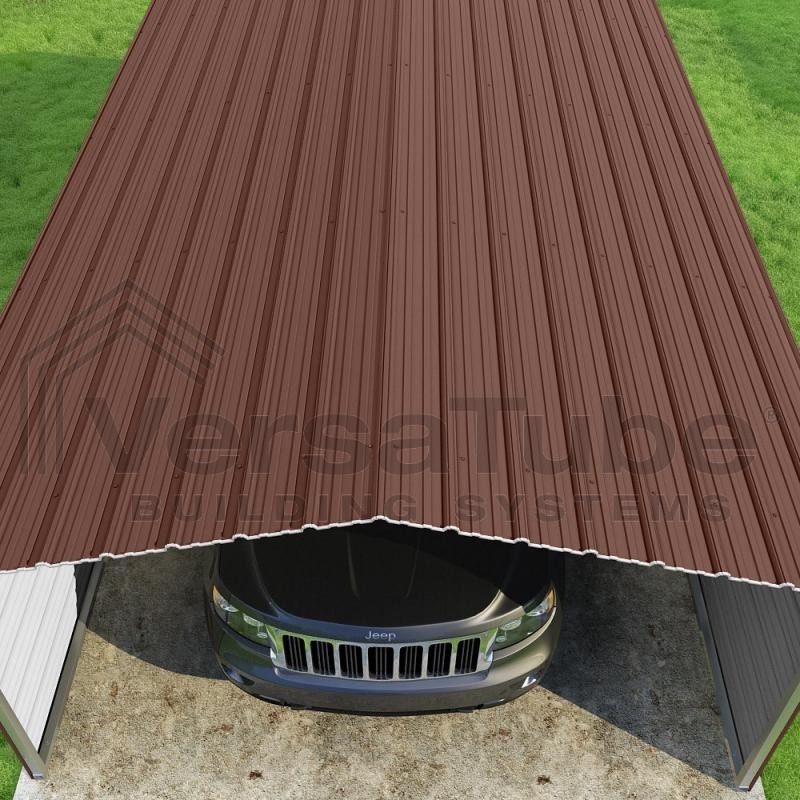

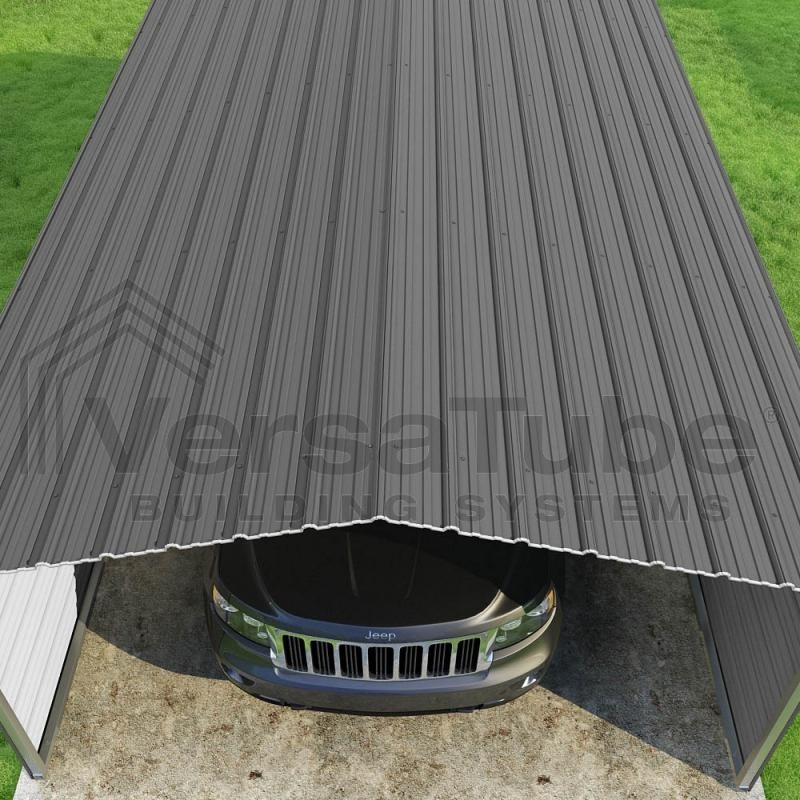

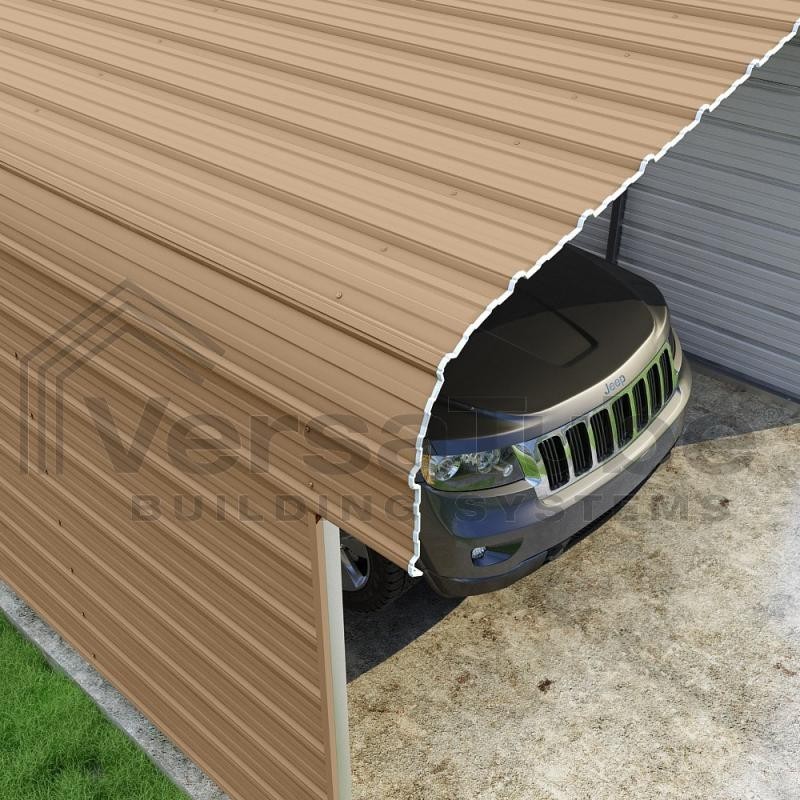

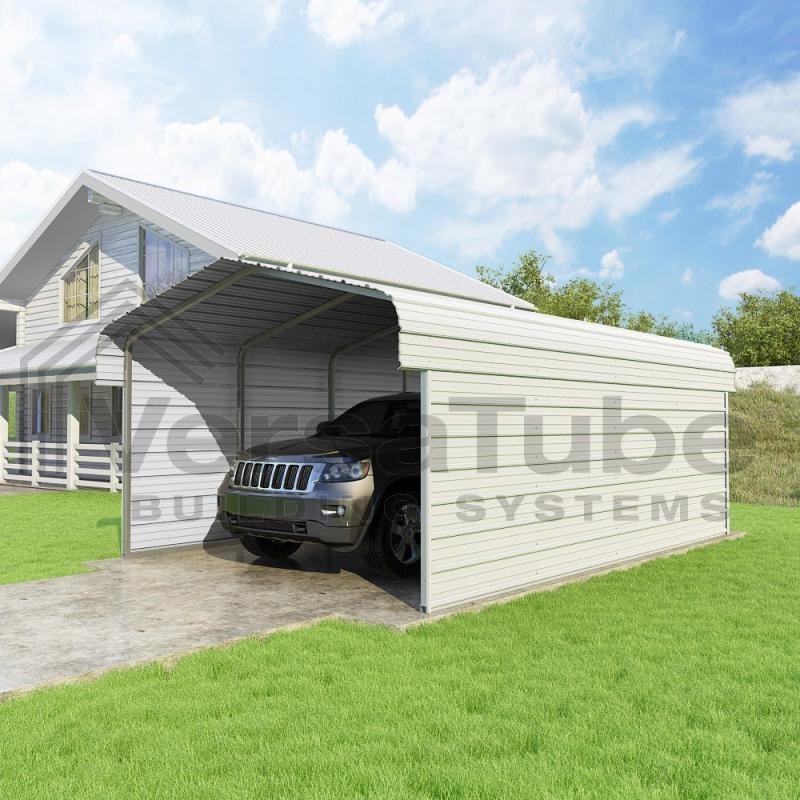

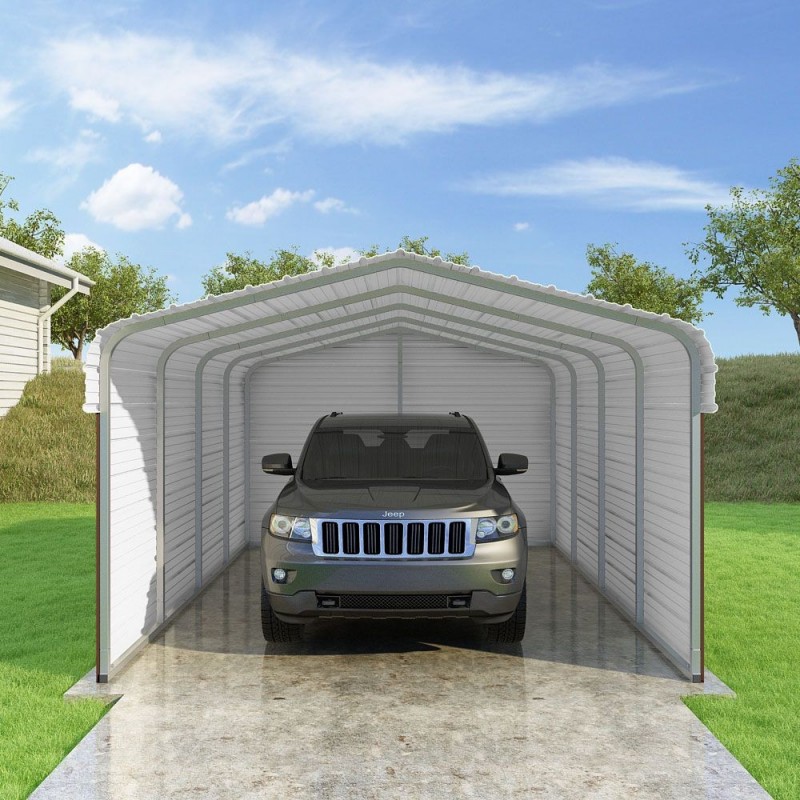

VersaTube 3-Sided 12x20x7 Classic Steel Carport Kit (C3E012200070-2)

VersaTube 3-Sided 12x20x7 Classic Steel Carport Kit (C3E012200070-2)

The Classic design has been the traditional mainstay of carport manufacturers and retailers for many years. And with the VersaTube Slip-Fit frame system, you can get your carport kit with roof assembled in a single afternoon using common tools.

Structure Dimensions:
Erection Size: 12'W x 20'L x 7'H
Roof Pitch: 3:12
Sheet Metal Coverage: Roof, sides and back
Side Wall Height: 7'
Peak Height: 8'6"
Special Note on Frame Length: Actual frame length is 18' long with 4.5' on center truss spacing
On Center Spacing: 4.5'
Steel Frame: 2"x 2" 15 gauge tubing made of the highest quality domestic galvanized steel
Sheet Metal Panels: 21
Sheet Metal Panel Size: 12', 10' and 9'2"
Sheet Metal Gauge: 29 gauge

Maximum Snow Load:
Ground Snow Load - 31 lbs
Roof Snow (LIVE) Load - 22 lbs
at 90 MPH wind load

Maximum Wind Load:
90 MPH wind load
at 27 lbs. Ground Snow Load
20 lbs Roof Snow (LIVE) Load

Shipping Dimensions:
Pallet Size: 40"W x 144"L x 16"H
Total Weight: 922 lbs

Warranty Details:
Frame Warranty: 20 year limited + product pledge
Sheet Metal Warranty: 20 year paint finish

Classic Series DIY carport kit features the addition of a back enclosure and side sheet metal panels to the standard horizontal roof canopy, providing extra protection with full coverage on three sides.
