Arrow 1-Sided 10 x 20 x 7 Enclosure Galvanized Steel Carport Kit- Eggshell (CPH102007ECL1)

Arrow 1-Sided 10 x 20 x 7 Enclosure Galvanized Steel Carport Kit- Eggshell (CPH102007ECL1)

The Arrow Carport with Enclosure offers a versatile and practical solution for all-weather shade and shelter requirements. Built with a 2-inch square tube powder-coated steel frame, it ensures stability and durability to withstand harsh weather conditions. Engineered for swift assembly, its unique slip-fit frame connection with pilot holes and self-drilling screws enables quick and convenient setup. Featuring rounded roof eaves and a 12-inch overhang at the roof gables, this carport provides added protection from the elements. Its heavy-duty 29-gauge galvanized steel sidewall, matching the roof, can be easily attached to enhance weather resistance. Both the roof and sidewall panels are finished in an attractive Eggshell finish, elevating the aesthetic appeal of your outdoor space. Proudly manufactured in the United States using globally sourced materials, the Arrow Carport with Enclosure is backed by a 10-year warranty. Whether shielding your vehicle from the elements or creating a shaded area for outdoor gatherings, it offers dependable protection with confidence.

Features:

• Featuring a 2 in. square tube powder-coated steel frame
• Its unique design features a slip-fit frame connection with pilot holes and self-drilling screws for assembly

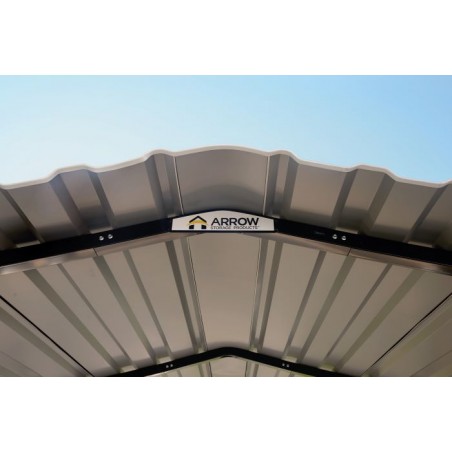

• Rounded roof eaves and 12 in. overhang at the roof gables

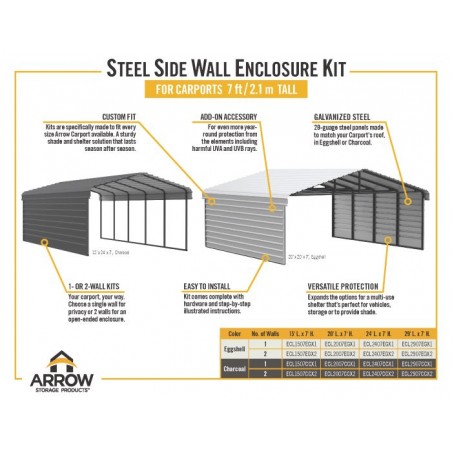

• A heavy-duty 29-gauge galvanized steel sidewall matches the roof and can be attached to the Carport
• The roof and sidewall panels come in an attractive Eggshell finish
• Manufactured in the United States using globally-sourced materials
• Comes with a 10-year warranty
• Snow load is given as reference only and assume a securely anchored frame according to local building codes and ordinances. These have been calculated using combined snow load provisions in accordance with ASCE 7-05.

Specifications:

Color: Eggshell
Frame Color: Black
Material: Steel
Assembly Required: Yes
Water Resistant: Yes
Building Shape: Peak
Shape of the Tube: Square
Wall Height: 84 in.
Assembled Exterior Dimensions: 120"W x 237"D x 98.4"H
Foundation Dimensions: 152"L x 132"W
Total Storage Volume: 1435 cu. ft
Total Storage Area: 191 sq. ft.
Wind Load Rating: 75 mph
Snow Load Rating: 35 psf
Door / Entrance Width Bottom: 116 in.
Door / Entrance Height: 82 in.
Shipping Dimensions: 30.5"W x 71.06"L x 24.85H
Shipping Weight: 775.15 lbs
Number of Boxes: 7
