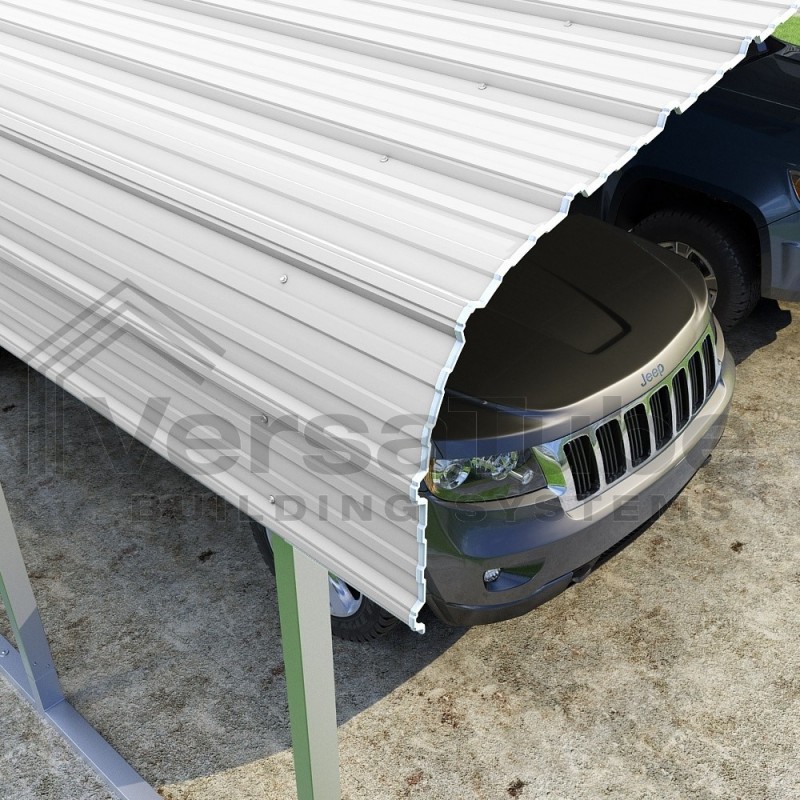

VersaTube 20x20x7 Classic Steel Carport Kit (CM020200070)

VersaTube 20x20x7 Classic Steel Carport Kit (CM020200070)

The Classic design has been the traditional mainstay of carport manufacturers and retailers for many years. And with the VersaTube Slip-Fit frame system, you can get your carport kit with roof assembled in a single afternoon using common tools.

Structure Dimensions:
Erection Size: 20'W x 20'L x 7'H
Roof Pitch: 3:12
Sheet Metal Coverage: Roof coverage is 19'10" with a front and back overhang of 11"
Side Wall Height: 7'
Peak Height: 9'6"
Special Note on Frame Length: Actual frame length is 27' long with 4.5' on central truss spacing
On Center Spacing: 4.5'
Steel Frame: 2"x 3" 14 & 15 gauge tubing made of the highest quality domestic galvanized steel
Sheet Metal Panels: 16
Sheet Metal Panel Size: 10'
Sheet Metal Gauge: 29 gauge

Maximum Snow Load:
Ground Snow Load - 31 lbs.
Roof Snow (LIVE) Load - 22 lbs
at 90 MPH wind load

Maximum Wind Load:
109 MPH wind load
at 27 lbs. Ground Snow Load
20 lbs Roof Snow (LIVE) Load

Shipping Dimensions:
Pallet Size: 40"W x 120"L x 14"H
Total Weight: 933.04 lbs

Warranty Details:
Frame Warranty: 20 year limited + product pledge
Sheet Metal Warranty: 20 year paint finish

Classic Series DIY carport kit features horizontal application of sheet metal panels with the extra protection of rounded eaves.

SELECT COLOR OF YOUR CHOICE!
