Arrow Steel 12x20x7 Carport Kit (CPH122007)

Arrow Steel 12x20x7 Carport Kit (CPH122007)

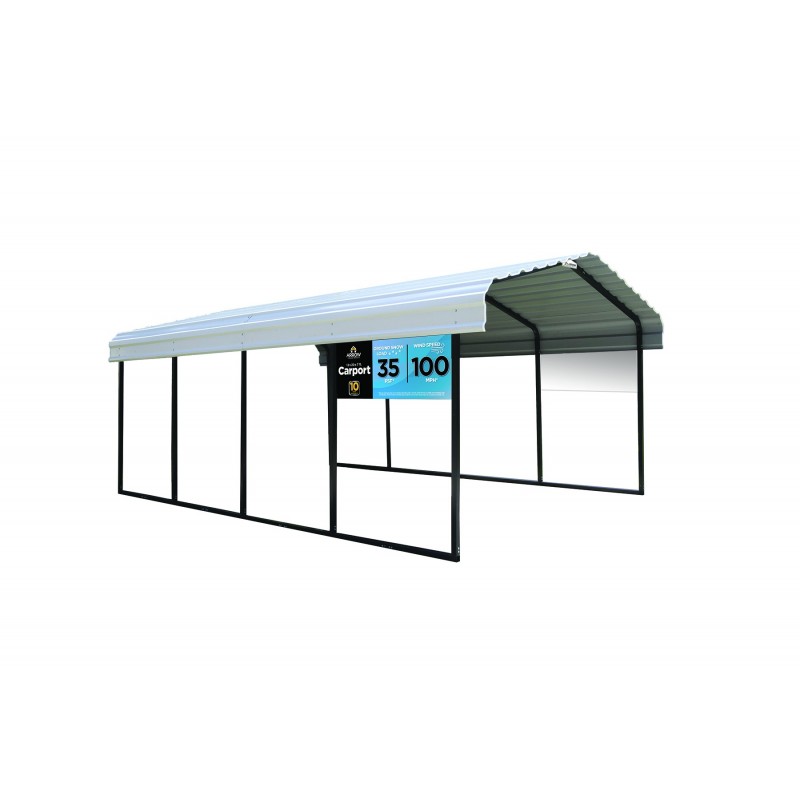

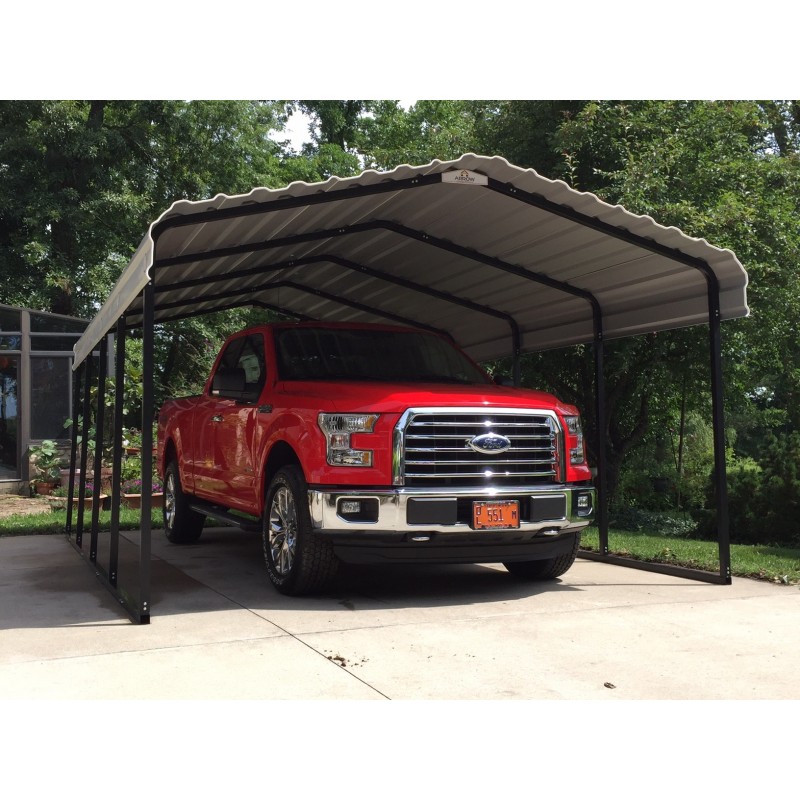

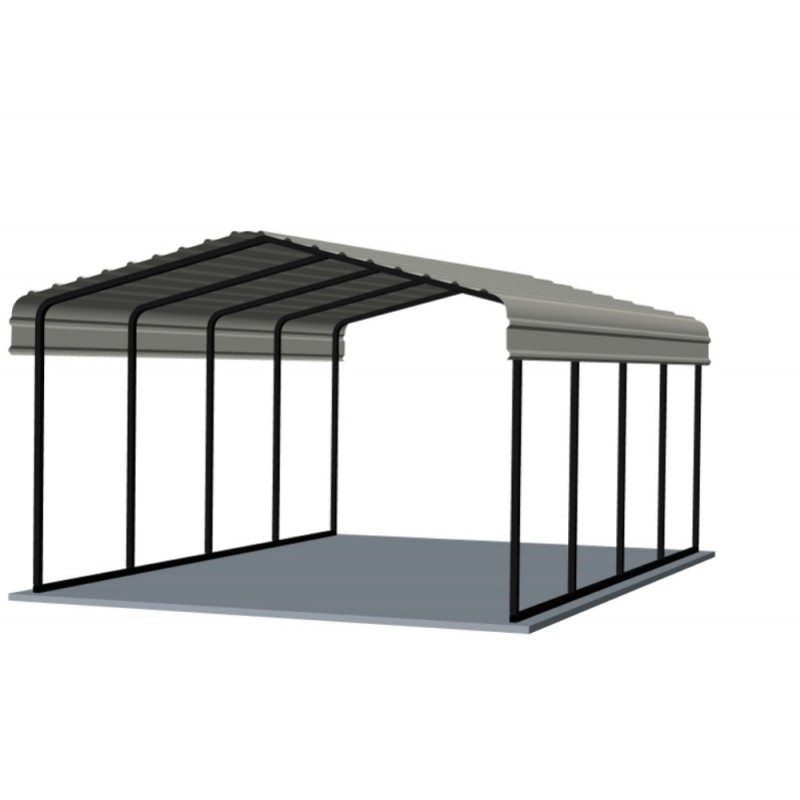

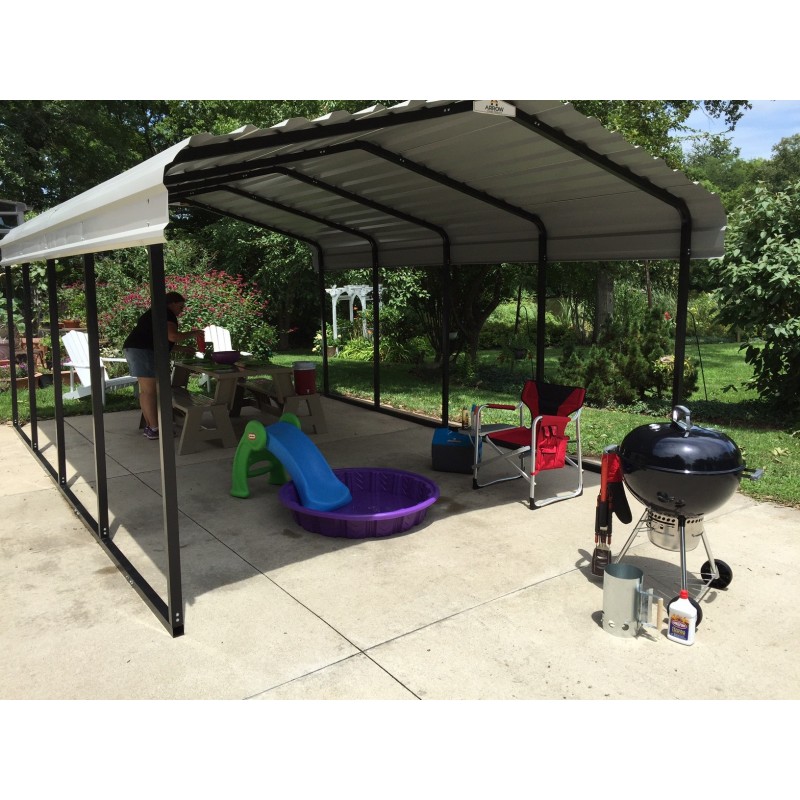

The 12 x 20 x 7 ft. Carport from Arrow is a newly re-designed carport and multi-use shelter that is wind and snow rated for maximum protection against the elements! Our carport features a galvanized steel roof with horizontal panels, and an industrial steel frame that has been powder coated to resist corrosion and rust. This 12 x 20 ft. Carport has a wind speed rating of 100 MPH and a snow/ground load rating of up to 35 PSF. Rain or shine - it doesn't matter. The Arrow 12 x 20 ft. Carport is a high-quality, steel structure that is perfect for protecting boats, vehicles, tractors and even outdoor picnic areas.

Features:

• 12 ft. Width x 20 ft. Depth x 7 ft. Eave Height (3,7 x 6,1 x 2,1 m)
• Built-To-Last Roof
• 10 ft. horizontal roof panels with 29 gauge painted galvanized steel for corrosion resistance
• Rounded eaves for additional protection from elements
• Peak height 8 ft. 6 in. (2,6 m) with 3:12 roof pitch
• 0.5 in. (26.7 cm) overhang at gables
• Industrial Grade Frame:
• 2 in. (5,1 cm) square tube / 15 gauge wall thickness delivers wind and snow load strength and stability
• Slip-Fit Frame Connection System for easy assembly
• 4.5 ft. (1,3m) rib spacing
• Finish: Black powder-coat frame and Eggshell roof panels
• DIY assembly
• 10 Year Limited Warranty
• Ground Snow Load:  35 lbs. per sq ft
• Wind Load:  100 mph

Specifications:
Color: Eggshell
Dimensions: 12 x 20 x 7
Style: Peak
Material: Galvanized Steel
Frame Color: Black
Included Items: Frame, Cover, Hardware
Rib Tubing Diameter: 2 in.
Total Storage Area: 234 sq. ft.
Total Storage Volume: 1792 cu. ft.
Assembly Required: Yes
Assembled Exterior Dimensions: 156"W x 237"D x 102"H
Assembled Interior Dimensions: 142"W x 237"D x 100"H
Door / Entrance Width Bottom: 142 in.
Door / Entrance Height Center: 82 in.
Wall Height: 84 in.
Warranty: 10 Year Limited
Wind and Snow Rated: Yes
Wind Speed Rating: 100 MPH
Snow Load Rating: 35 psf
