Palram Canopia Sydney Wave Double Carport Apex Style (HG9093)

Palram Canopia Sydney Wave Double Carport Apex Style (HG9093)

Experience the ultimate freedom in vehicle protection with the Sydney Cantilever Carport. Engineered for efficiency and durability, this innovative carport boasts a sleek design that maximizes space while offering exceptional weather resistance. Measuring nearly 10 feet wide by 20 feet long, the Sydney Carport features a two-legged structure that eliminates the need for additional posts, perfect for tight turnaround areas or car charging stations. Its advanced polycarbonate panels not only transmit sunlight for a naturally lit environment but also provide superior UV protection and ample shade. Whether used as a flat top carport, a stylish patio cover, or a relaxing outdoor lounge area, it effortlessly adapts to your needs. Built to withstand volatile weather conditions, including snow, hail, wind, and UV rays, the Sydney Carport includes a robust internal gutter system for efficient rainwater management. Its unique design allows for versatile installation options, from a double carport in apex or wing shapes to complement any space.

Before ordering, ensure compliance with local building and zoning codes and secure any required permits. Elevate your parking experience with the Sydney Cantilever Carport, offering modern aesthetics and reliable protection for your vehicle against the elements.

Features:

• Versatile Cantilever Carport: The flat top carport has two massive (3 x 6.5 in) posts to optimize space with overhead clearance of 6'6"-9’5".
• Durable Structure: Aluminum frame is a strong, rust-resistant grey-coated metal and includes integrated rain gutters to direct rainwater.
• Resilient Panels: Polycarbonate is 100% UV protected, virtually unbreakable and does not turn yellow or become brittle over time. No need to remove panels for Winter.
• UV Protection: The corrugated solar grey polycarbonate panels provide 10% light transmission, protecting your vehicles from strong sunlight exposure.
• Year-Round Weather Resistance: Wind, snow, and hail resistant. Tested to withstand winds up to 75 mph and 15 lb./ft² of snow.
• Self-Assembly: Easy sliding panel system includes pre-drilled profiles and pre-cut panels making assembly as simple as possible. Concrete footing required for installation.
• Warranty: 10 Year Limited Warranty. Customers are responsible for ensuring a perfectly flat, level surface site for construction.

Specifications:

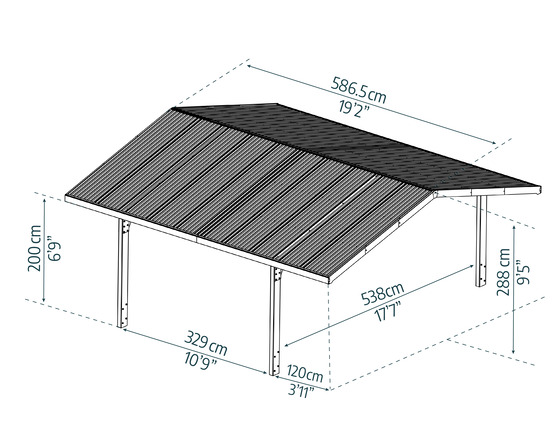

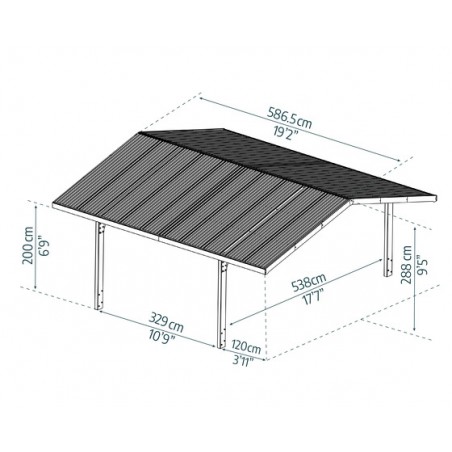

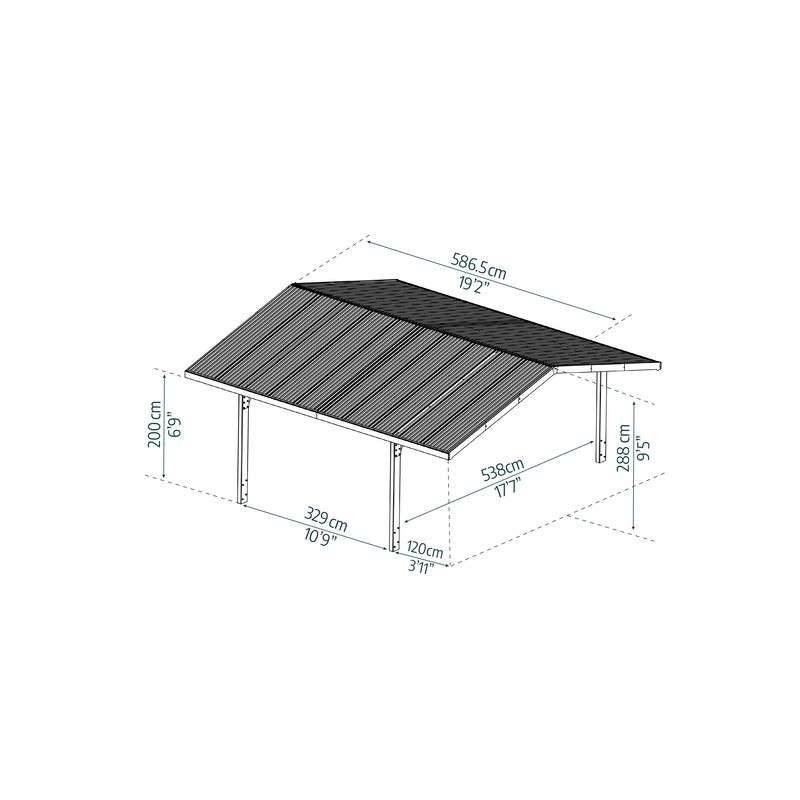

Dimensions: 231.1 L x 225.2 W x 113.4 H
Side Wall: 78.7"
Total Product Weight: 957.5 lbs
Snow Load: 13.31 psf
Wind Load: 75 mph
Light Transmission (%): 10
Roof Material: 1mm Polycarbonate
Roof Color: Solar Gray
Frame Material: Aluminum
Frame Color: Black

SHIPPING

Curbside Tailgate Delivery – No Lift Gate Service

A type of LTL Freight delivery most commonly used by carriers for oversized freight that cannot fit on a lift gate.

For this type of delivery, customers are required to prepare at least 2–3 people to assist with unloading. If the item is too heavy, the cartons can be unstrapped from the pallet and carried one by one. If they are still too heavy, the cartons can be opened at the end and larger pieces can be slid out to lighten the load.

The drop-off point is at the street level, as shown in the image BELOW.
