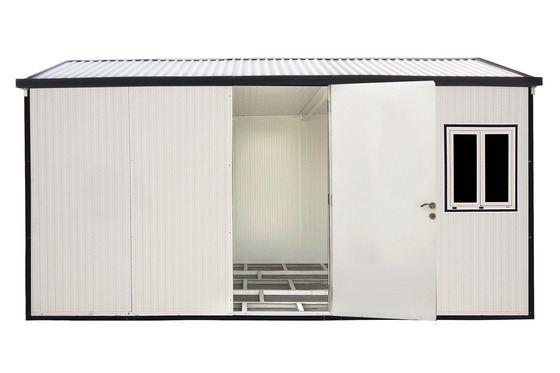

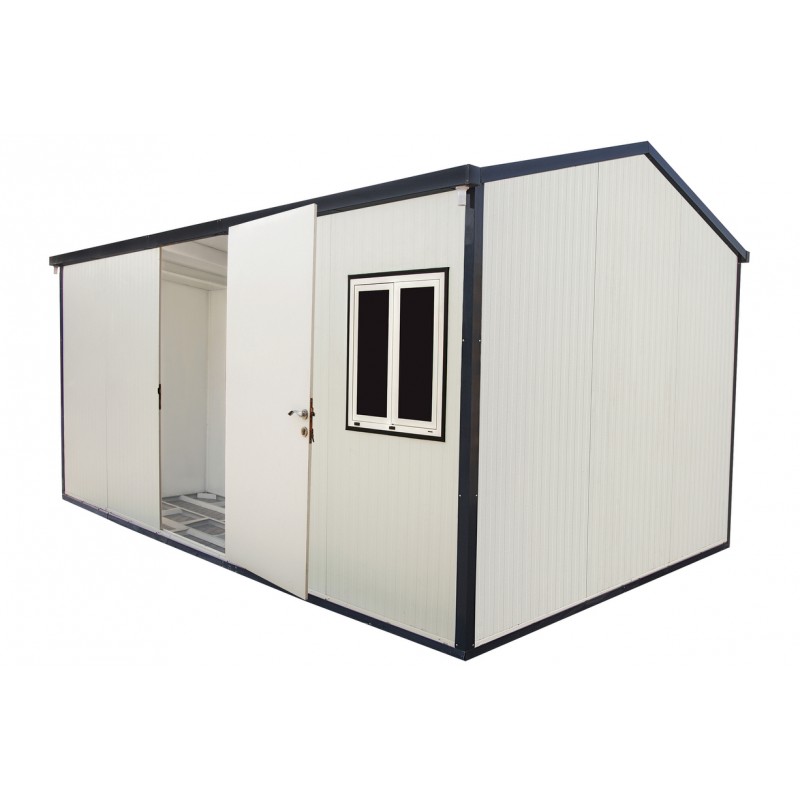

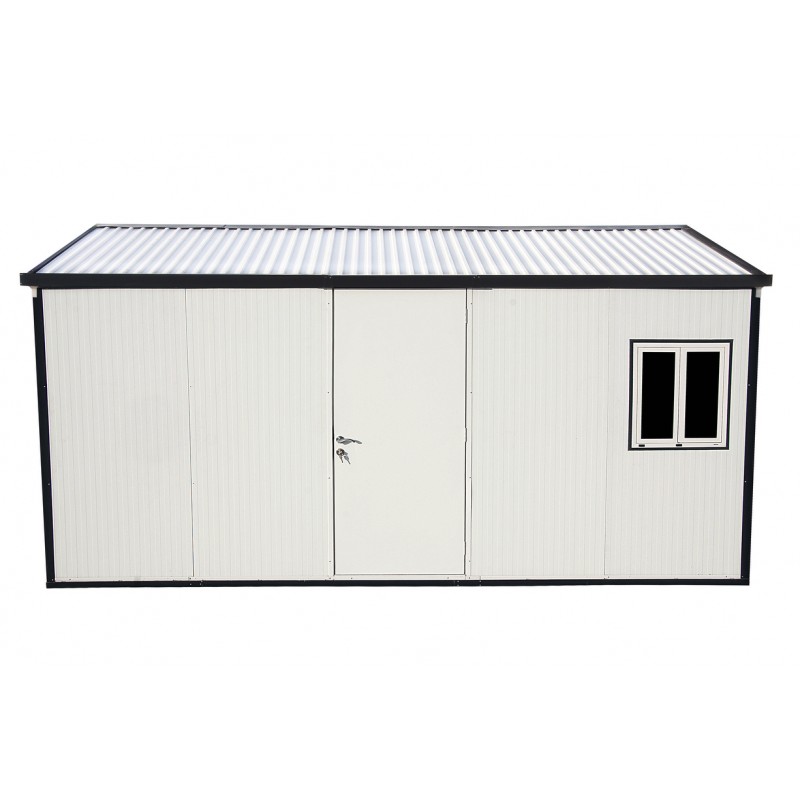

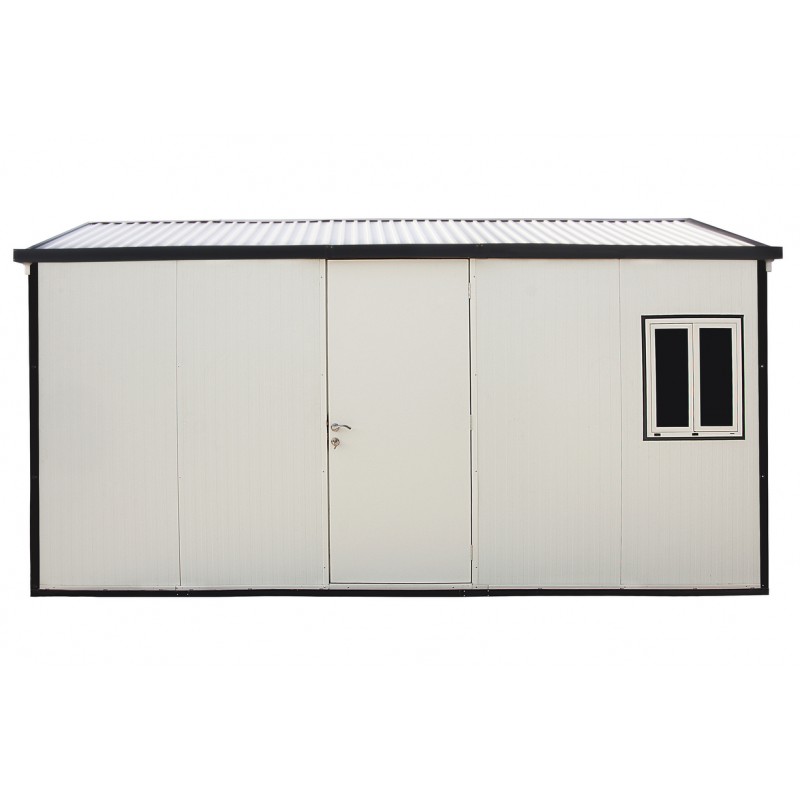

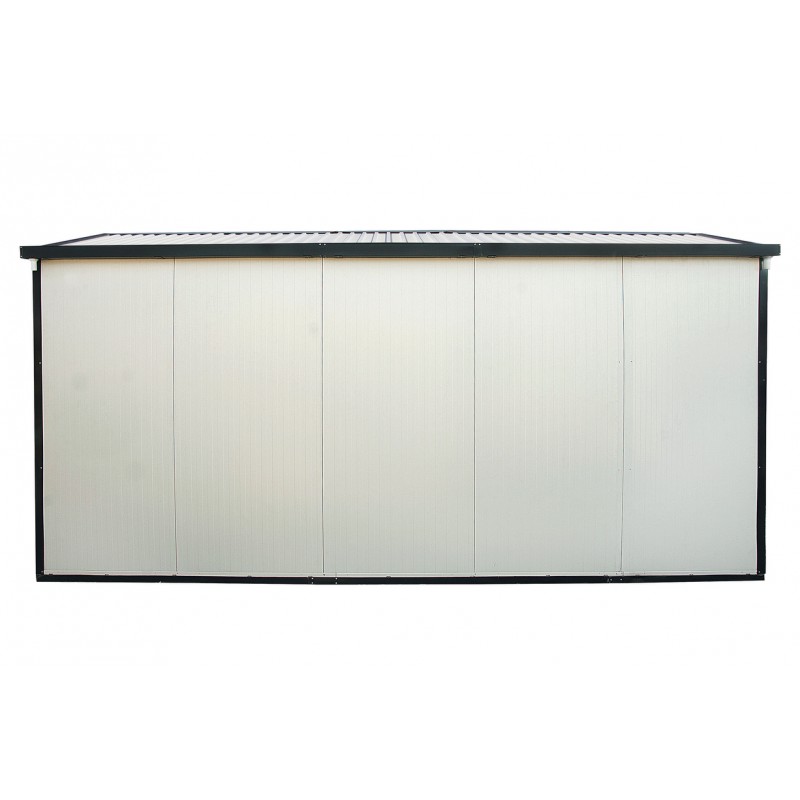

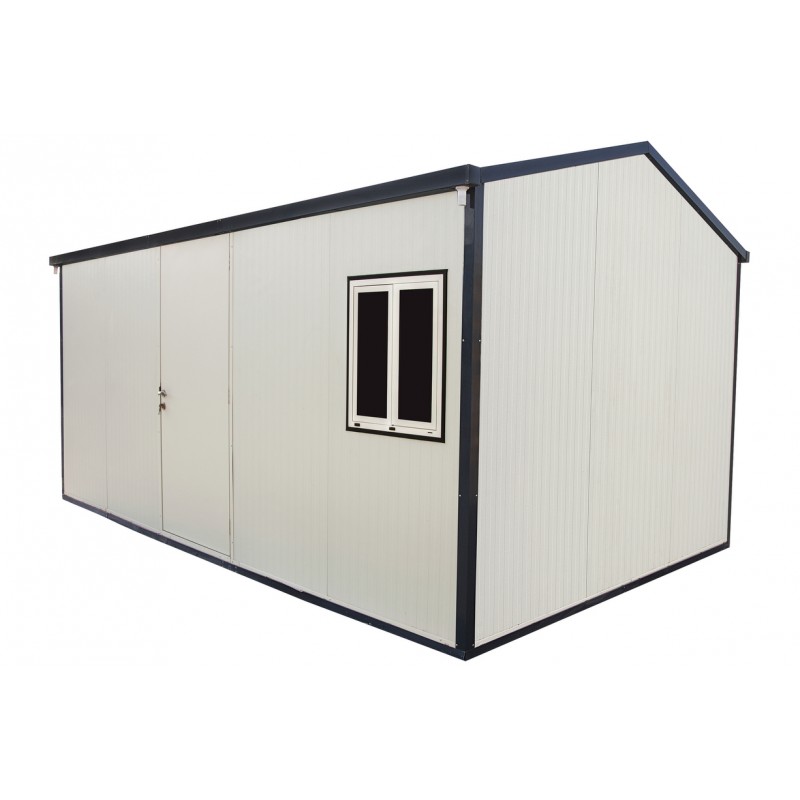

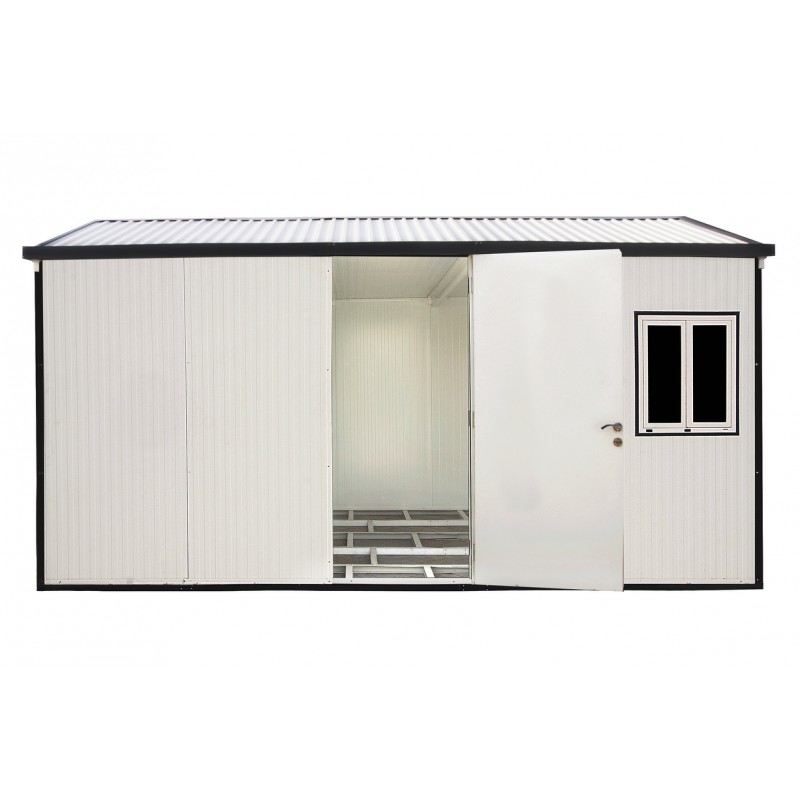

DuraMax Insulated 16x10 Gable Roof Shed Kit w/ Foundation (30952)

DuraMax Insulated 16x10 Gable Roof Shed Kit w/ Foundation (30952)

The Duramax Insulated Buildings offer all-weather durability. Ideal for all weather conditions and can be used for various purposes. Designed for meeting all your storage, work, or expanded space needs, these can be used for everything from storing garden tools and accessories, to a pop-up office or hobby room, to a 'She Shed' or 'Man Cave'. And because it’s modular, easy to assemble, and can be expanded to fit your every need, it’s the perfect choice for every outdoor space.

The construction provides a strong lasting wall that reduces heat gain on summer or heat loss in winter making these buildings ideal for all weather conditions and usable for various purposes. These buildings are manufactured with durable, coil-coated galvanized steel on both inner and outer layers with a fire-retardant CFC Free Poly-Urethane insulation between them.

Each insulated building features a single window kit and a foundation kit which is made from galvanized metal for superior outdoor resilience. It’s shipped in two crates with simple, easy-to-follow directions to make assembly faster and more efficient

FEATURES:

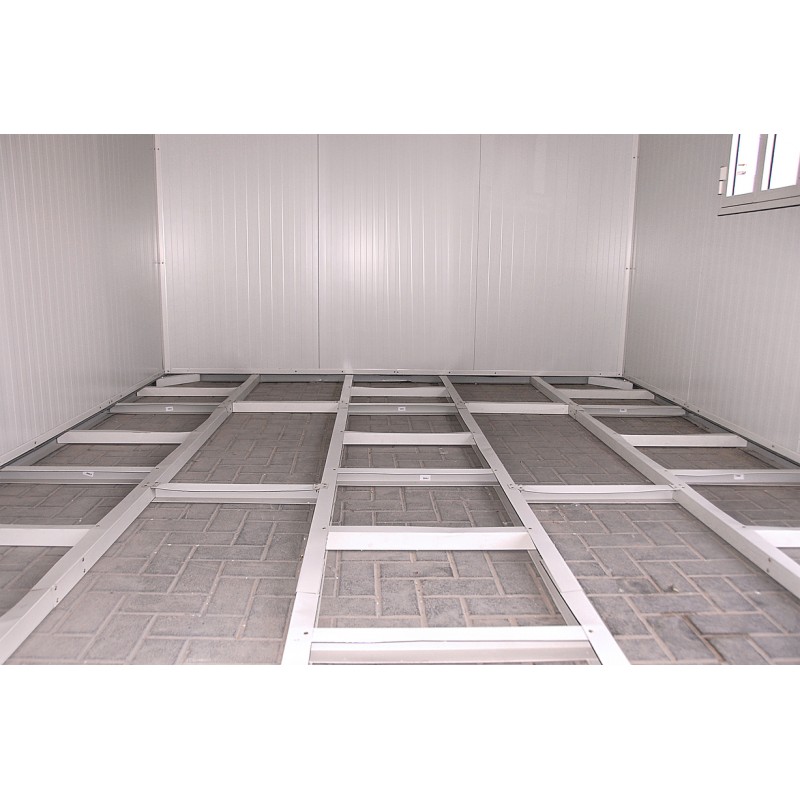

• Includes a metal foundation that allows building construction on just about any flat, level surface. Concrete is NOT required (finishing materials plywood)
• One double pane, swing open window with latch ncluded!
• Includes gutters on front and back roof lines!
• Pre-painted galvanized inner and outer walls provide a stable, impenetrable wall
• Thick fire-retardant CFC-Free B2 polyurethane insulation offers excellent thermal and acoustic performance
• Easy-to-assemble bolted tongue and groove wall panel assembly. Provides fast assembly and disassembly. Parts are pre-cut, drilled and numbered for fast simple installation
• Stackable wall panels, single crate package so that the building can be moved if needed even in a pickup truck
• Snow load of 30 lbs/sqft - one of the strongest do-it-yourself buildings
• Secured door with a deadbolt lock can be configured on any side wall panel of the building
• Step-by-step instructions included
• Extension kit available in 6 ft. increments and mountable on either side
• Delivers in single wood crate via common carrier
• 7 Year Limited Warranty
• This kit includes one 13x10 Building with one 3 ft extension kit

Specifications:
Color: Off-White / Anthracite Trim
Exterior Dimensions (inches):
Width: 159 ¼" (Roof Edge to Edge: 162 ¹⁄₈")
Depth: 120 ⁵⁄₈"(Roof Edge to Edge: 127 ¹⁄₈")
Height: 104 ¹⁄₈" Roof Edge to Edge
Interior Dimensions (Wall to Wall): 156 ⁷⁄₈" W x 118 ¼" D x 81 ½" H
Door Opening: 36 ¼" W x 77 ⁷⁄₈" H
Extension Kit Dimensions (10' x 3.3' ft.):
Exterior Dimensions (inches):
Width: 39 ½" (Roof Edge to Edge: 39 ½")
Depth: 120 ⁵⁄₈"(Roof Edge to Edge: 128 ⁵⁄₈")
Height: 92" Roof Edge to Edge
Interior Dimensions (Wall to Wall): 39 ½" W x 118 ¼" D x 82 ⁵⁄₈" H

BEFORE YOU BEGIN:
1. Check your local building codes regarding footings, location, etc.
2. Select a site that allows enough working space around the shed.
3. Determine building foundation and anchor system.
4. Read and understand the Owner’s manual enclosed in the package.
5. Follow all directions and dimensions thoroughly.
6. Follow the steps given in the manual carefully for correct assembly.
7. Make sure all parts are present before you start assembling.
8. BE SAFE: Follow safety instructions and avoid injury.
(See inside page).
9. GROUND MUST BE EVEN: Make sure the foundation frame lies flat on the ground. If the earth bed is uneven, remove
the sod and other debris and level it with a flat shovel.
10. Separate the contents of the carton by the part number and review the list. Be sure you have all the necessary parts for your shed.
Refer Owner’s manual for the part list.

PACKAGING:
The building is packaged in a heavy-duty cardboard box and plastic shrink-wrapped on a wood pallet. The
packaging includes all components, hardware, and an illustrated step-by-step instruction booklet. Shipped
common carrier and requires lift gate for residential delivery

ASSEMBLY MADE EASY:
The assembly is simple, clean, safe and can be completed in four to five hours with two people. All parts are pre-cut, drilled, and numbered for ease of assembly. All you need to provide is a level surface of either wood or concrete, the size of the desired building. In addition, you will need a power drill, hammer, measuring tape, pliers, and a ladder.
